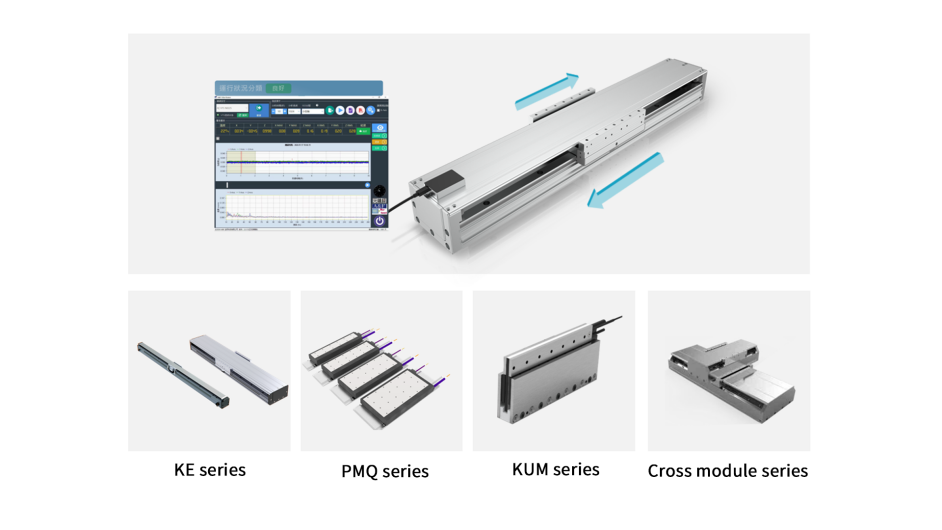

Including linear, rotate, swing and lift, the track mode uses linear ball Gothic arc grooves on the upper and lower rail surfaces of the body, each composed of double solitary grooves. The steel ball moving in a single groove is a two-point contact structure, and the double arc grooves have a total of four contact points, so it constitutes a solid sliding rail structure. Transmission mode - ball screw, through the ball in the nut and screw rolling contact, its positioning accuracy and high life, with high-speed forward and reverse transmission and change transmission characteristics

The Alignment stage is called XXY stage, which is widely used in the visual counterpoint system. Our products cover 150mm-550mm, larger size can be customized. With ultra-thin, lightweight platform -Mini modular structure design, achieve a thin and light mechanism without center seat, through special cross roller bearings applied repressure, high rigidity, high precision performance, can be used as an optical inspection device or conduction tester.

With a unique hollow shaft structure for line, tube and other connecting parts hidden installation, high rigidity and high deceleration ratio make it with high load capacity, the combination of speed and accuracy can replace the CAM divider and DD motor. The size of the hollow shaft rotating platform flange sold by the company is mainly 60mm, 85mm, 130mm, 200mm, and the large-diameter center hole is more convenient to thread, which can be installed, side installed and inverted, and easily match the stepping motor or servo of various manufacturers.

Kaifull stepper motor range includes hybrid stepper motors, brake stepper motors, deceleration integrated stepper motors, hollow shaft stepper motors, DC and AC to choose from. With strong distance, high response, low vibration, high precision, high durability and other characteristics, widely used in a wide range of 3C electronics, semiconductor equipment, CNC machine tools, medical equipment, laser engraving, textile printing, packaging equipment and other industries
