Areas of application:

• Presses for metal, wood, plastic, rubber, leather and glass
• Filter presses
• Chamfering and bending machines
• Injection moulding machines
• Machining centres and welding presses
• Automatic placement machines
• Robots
• Palleting machines

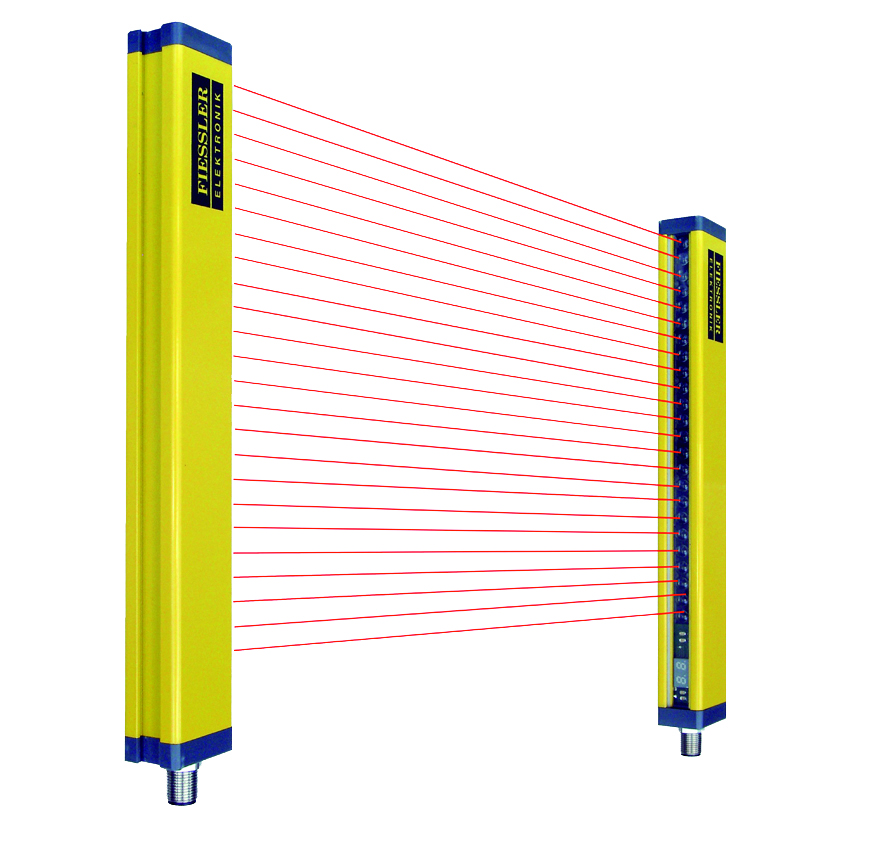

Properties

• Integrated control-unit with contactor control and restart can be programmed without a PC
• Contactor/valves directly connectablly, switching capacity 0,5A/24V
• Smallest safety distances by short response times 4 ms to 29 ms, depending of the protection high
• Finger and hand protection with up to 5m protective width(resolution 14 mm and 30 mm)
• Protection heights from 100mm to 1500 mm in steps of 100 mm
• Microcontroller monitoring of the safety functions (self-monitored)
• Semiconductor outputs with short-circuit and crossconnection monitoring
• Integrated self-diagnosis with a fault indication by 7-digit display
• Optional safety switchgears permit muting and clocked operation
• Direct connection via M12 connector
• Compact design 25 x 35 mm w/ flexible fastening by tenon blocks and protection category IP 65

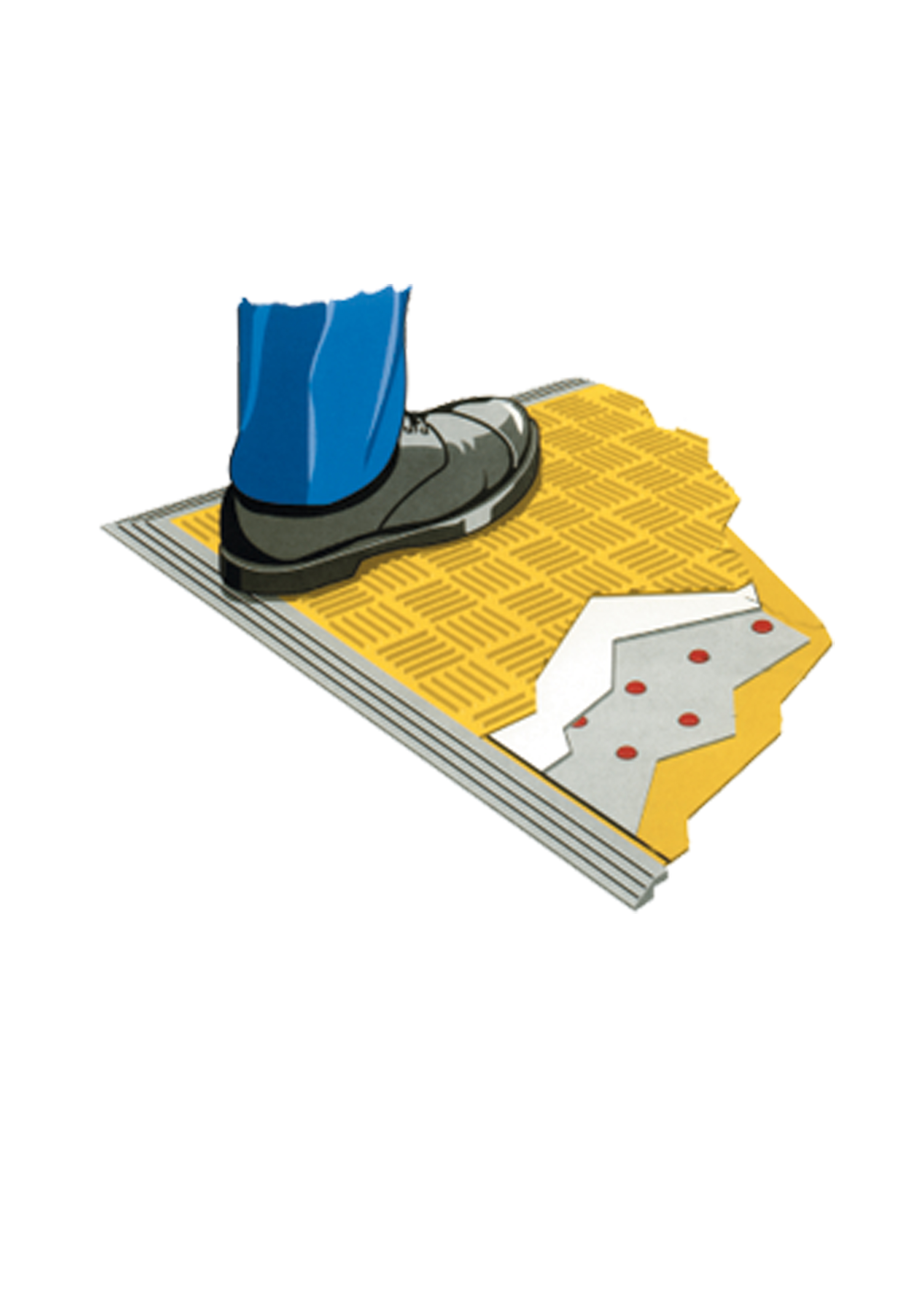

Safety Contact Mats are used for safeguarding areas of danger on machines and plants with the aim of preventing unchecked access. The switching mat can be individually adapted to the area which has to be secured. With the help of the closed-circuit-principle a constant monitoring of the safety contact edge is insured.

Contact mats are used on...

• machines, plants and robotic systems where the areas of danger are unchecked accessed
• plants where the presence of a person at a certain position is necessary
• elevators, in order to prevent the unallowed entering of the elevator roof
• building entrances

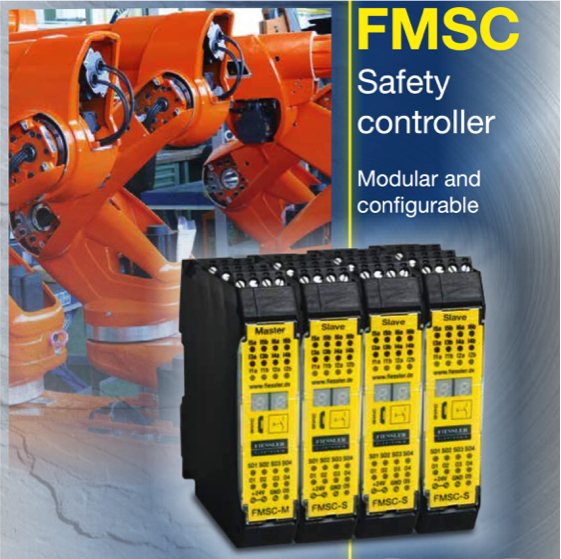

FMSC the Safety PLC from Fiessler Elektronik

Fiessler Elektronik has consequently implemented its more than 60 years of experience and know-how with the new and configurable modular FMSC safety controller. The development not only focused on the high standard of safety but also on how to simply and rapidly implement projects. Miscellaneous functionalities, such as creating combinations, make it easier for the user to program the safety controller. Already created projects can also be comprehensively documented. Rapid response times as well as the safety-oriented monitoring of up to 17 axes round off the profile of the new FMSC safety control.

The modular structure of the FMSC system family ensures that the most efficient hardware solutions will always be found for a monitoring task. The variations Eco, Basic, Advanced and Professional provide a selection of different master devices with a respectively different range of functions. The corresponding functionalities are simply integrated or configured with the programming software, FMSC Studio. The system can be expanded at any time with up to 16 expansion modules. As a result, up to 204 digital inputs and up to 153 digital outputs are available today. And up to 17 axes can be monitored for safety. The compact design makes it easy to integrate the safety control in new systems as well as for retrofitted systems.
