In addition to linear drives, FGB specifically develops and produces rotative drive systems in the shape of torque motors. These are usually multi-pole electrical direct drives from the group of slow runners. Torque motors therefore often have a very high torque at relatively low speeds.

The FGB torque motors are designed as outer rotors (stator inside, Rotor=’Rotors’ outside) and as inner rotors (rotor inside, stator outside). This means that the design of the drive can be adapted optimally to the respective technical requirements.

To boost the performance of the direct drives, FGB develops cooling systems that are perfectly tuned to the motor and intervene precisely where the heat is created. These leads to higher efficiency and better performance. This is usually implemented by means of active fan or liquid cooling. Here, the company can fall back on extensive experience from various applications.

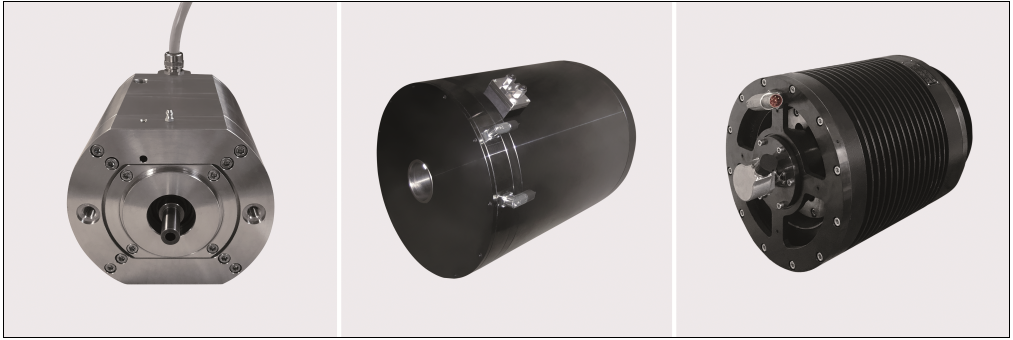

Picture:
left: high speeed direct drive,14.000 rpm, dimensions 130x130mm, weight 10kg, power 20kW
middle: Torque motor RMI320-350, max. torque 8000Nm, hollow shaft 200mm
right: high power torque motor RMI 200-175, max. torque 1000Nm, speed ±6000 rpm,

FGB develops high-performance transversal flow drives, e.g. as linear drives that are designed to customer specifications. In addition, the company also designs and produces rotative systems based on the transversal flow technology.

FGB has specialised in greatly simplifying the production of these systems which is one of the reasons why they can be implemented widely in practice.

Today, transversal flow drives can be produced simply and inexpensively, and are perfectly suited for use on long paths.

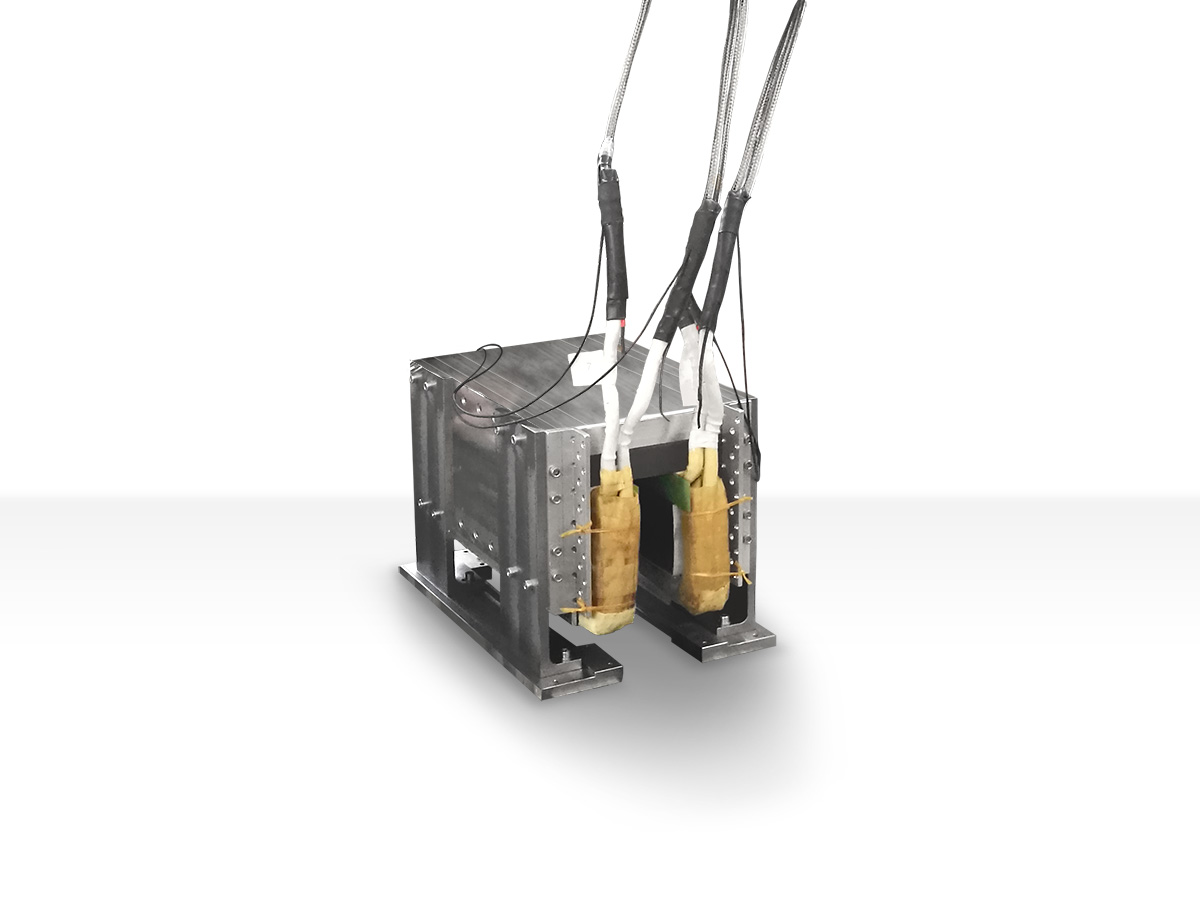

Picture: Active part transverse flux linear motor, maximum force 12kN, speed up to 6m/s,  three-phase design

Linear motors are used as direct drives wherever excellent dynamics and precision are required. The customer-specific alignment of the direct drives by FGB allows linear motors to be adapted ideally to the conditions of the respective machine and integrated. If necessary, we also use unusual forms and materials to achieve the best possible result for our customers.

FGB’s performance range covers the entire process chain: Calculation, production and development of linear motors are carried out in close cooperation with the customer. FGB supplies both individual components, in the shape of primary and secondary parts, and also as complete linear motor axles and systems.

Generally, motors by FGB stand out thanks to their compact design and high-power density. If there is sufficient cooling, the direct drives can reach a thrust of up to 12N/cm2. Different speeds and DC link voltages are realised with corresponding coils. FGB can also fall back on its experience with short and long stators.

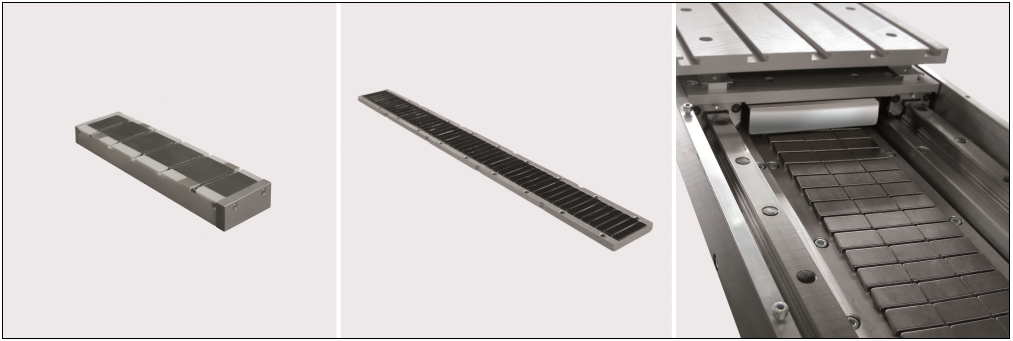

Picture:
left: shortstator linear motor, dimensions 50x 150mm, max. force 1 kN
middle: linear motor track with maagnets, dimensions 50x 1150 mm, force 1 kN, stroke 1000mm
right: longstator linear motor with maximum acceleration 200m/s²

In direct drives, the motor is connected directly to the operating machine. In this way, direct drives avoid most mechanical transmission elements between the motor and operating machine. For instance, there are no components such as belts or transmissions. Wear, noise, maintenance expenses and the impact of mechanical batches is reduced significantly. The number of parts and the associated space requirements for a drive system are reduced significantly.

The higher system rigidity of direct drives allows extremely precise positioning. High acceleration values guarantee much shorter cycle times. Direct drives are primarily designed with permanent magnet excitation and stand out thanks to a high torque (torque motor) and/or high thrust (linear motor). FGB direct drives already have full torque and full thrust at standstill, and make this available throughout the entire rpm and speed range.

HERE IS A SUMMARY OF THE MOST IMPORTANT BENEFITS AGAIN:

• No gears/belts, therefore less noise, no soil in the system, less friction, less wear and maintenance
• Fewer parts, which means less procurement/assembly effort
• No play, therefore highly dynamic acceleration with a high level of positional precision
• High dynamics: Shorter cycle times boost the machine productivity
• High efficiency that is precisely tuned to the application
• Less construction space: The machine requires less space

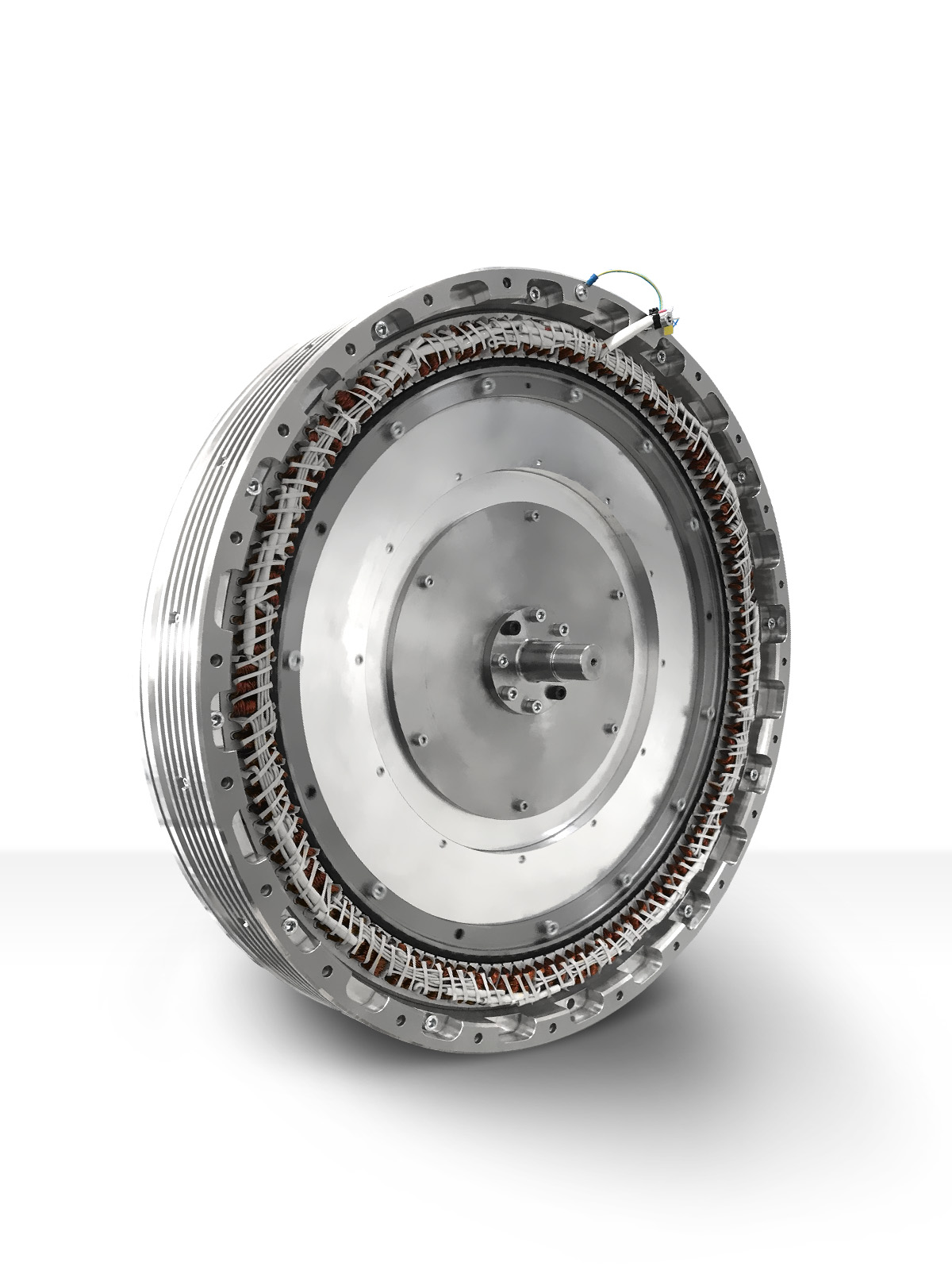

Picture: High-pole direct drive in lightweight design, weight 25kg, 2000Nm maximum torque at 150rpm

FGB is not only a leading manufacturer of direct drives, it also develops and builds high-performance and energy efficient generators for small power plants (up to 100kW) based on permanently excited synchronous machines. An electrical generator is the name given to a system that converts mechanical energy into electrical energy. The company produces both rotative and also translational operating generators.

The benefit of synchronous generators compared to asynchronous machines lies in the fact that these have good part load behaviour in connection with corresponding power electronics. This allows very high levels of efficiency to be achieved even in operating points that vary greatly from the rated range. This is especially important in the field of wind and water power, because wind and water are not always available in the same way.

Come and be inspired by the energy efficiency and high-performance density of our generators. We will be happy to advise you in detail here.

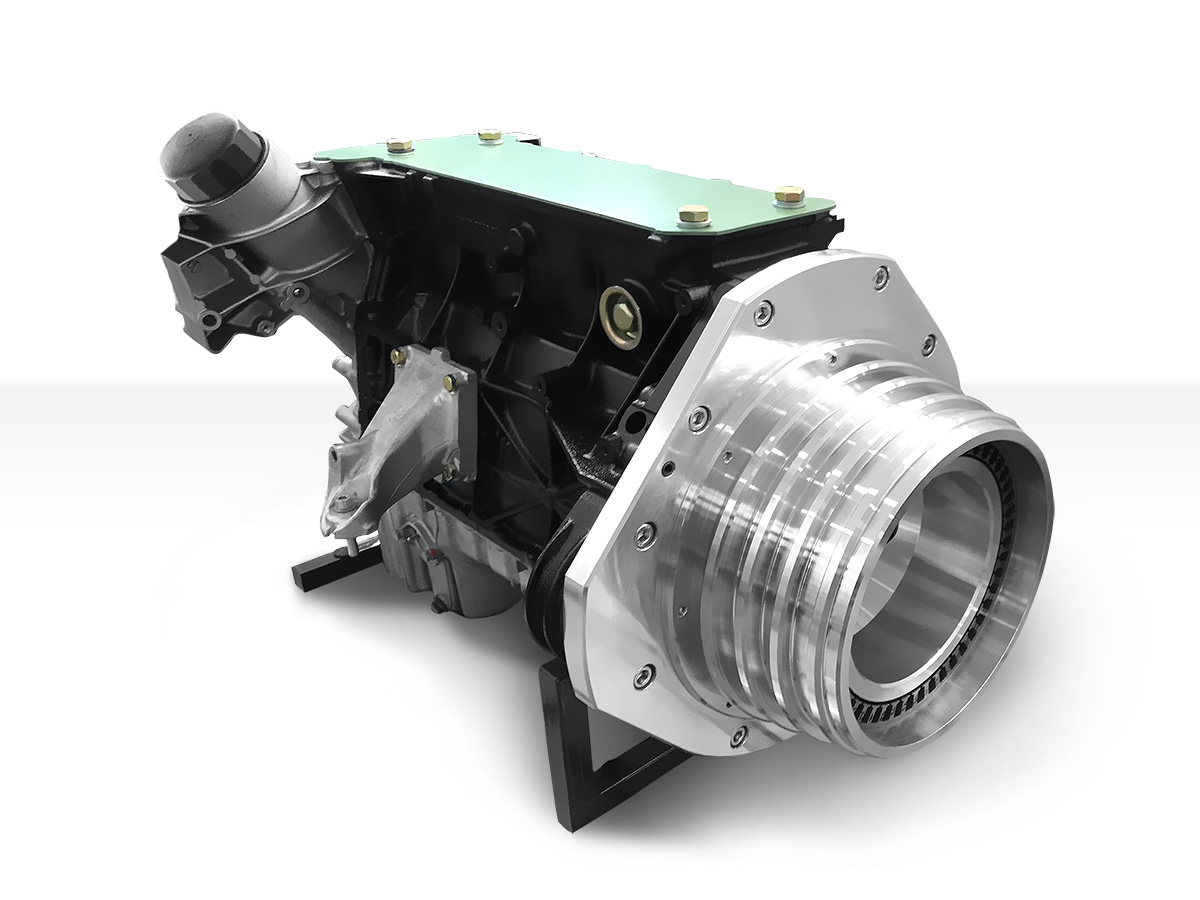

Picture: Hydrogen-powered 4-cylinder internal combustion engine with 120kW crankshaft generator. The crankshaft generator converts the mechanical power of the combustion engine into electrical power. The combustion engine is powered by hydrogen and complements fuel cell technology.
