MQR120-24F is a high-performance rail-mounted switching power supply launched by Mibbo, belonging to the MQR120-□F series. This product is specifically designed for industrial control systems, semiconductor manufacturing equipment, factory automation, electromechanical devices, and other applications, providing stable and reliable power supply.

1. Product Features

International Universal Full-Range AC Input: MQR120-24F supports AC input voltages within a global range, enabling seamless operation in diverse power environments worldwide without the need for additional power conversion equipment.
Multiple Protections: The power supply features multiple protection functions such as short-circuit, overload, overvoltage, and over-temperature,ensuring that in abnormal conditions, the power supply can quickly disconnect to safeguard both equipment and systems.
Natural Air-Cooling Design: Adopting a natural air-cooling heat dissipation method, it eliminates the need for additional fan equipment, reducing noise and failure rates while improving the reliability and service life of the power supply.
Rail-Mounted Installation: MQR120-24F supports TS-35/7.5 or TS-35/15 rail-mounted installation, which is convenient and quick, suitable for various industrial cabinets and devices.
2. Electrical Specifications

Input Parameters:
Input Voltage: 196-264VAC or 120-370VDC
Input Current: Determined by input voltage and load conditions
Input Frequency: 47-63Hz
Inrush Current (max): Determined by input voltage
Output Parameters:
DC Voltage: 24V
Output Voltage Regulation Range: 24-28V
Rated Current: 5A
Rated Power: 120W
Ripple Noise (max): 120mVp-p
Voltage Accuracy: ±1%
Line Regulation: ±0.5%
Load Regulation: Determined by specific load conditions
3. Environmental Parameters

Operating Temperature: -30～+70℃
Storage Temperature: -40～+85℃
Storage Humidity: 10-95%RH
Vibration Resistance: 10-500Hz, 2G, 10 minutes/cycle, 60 minutes each for X, Y, and Z axes
4. Other Parameters

Mean Time Between Failures (MTBF): ≥474.6K hrs (MIL-HDBK-217F, 25℃)
Installation Method: TS35 rail-mounted installation
Protection Class: IP20
Weight: Approximately 0.65kg
Dimensions: 125.240113.5mm
5. Application Fields

The MQR120-24F rail-mounted switching power supply is widely used in industrial automation, control systems, semiconductor manufacturing, electromechanical devices, and other fields, providing stable and reliable power supply for a wide range of equipment and systems.

MQR240-24C is a high-performance, high-reliability rail-mounted switching power supply produced by Mibbo。

1. Product Features

High Efficiency: MQR240-24C boasts excellent performance with an output power of up to 240W, an output voltage of 24V, and a rated current of 10A, meeting the power supply requirements of most industrial equipment.
Stability and Reliability: Featuring advanced circuit design and protection mechanisms, featuring multiple protection functions such as short-circuit, overload, overvoltage, and over-temperature, ensures stable operation, even in harsh conditions.
Wide Applicability: MQR240-24C supports international universal full-range AC input and has active PFC functionality, adapting to power grid variations in different countries and regions. Additionally, it supports TS35 rail-mounted installation, simplifying installation and maintenance for users.
Safety Design: With built-in safety mechanisms like redundancy design, the power supply minimizes risks even in case of failure. It has an IP20 protection rating, effectively preventing the ingress of dust and foreign objects.

2. Technical Specifications
Input Parameters:
Input Voltage: 196-264VAC or 120-370VDC
Input Current: Automatically adjusts according to input voltage and power
Input Frequency: 47-63Hz
Inrush Current (max): Varies based on input voltage
Output Parameters:
Output Voltage: 24V (adjustable range: 24-28V)
Rated Current: 10A
Rated Power: 240W
Ripple Noise (max): 150mVp-p
Voltage Accuracy: ±1%
Line Regulation: ±0.5%
Load Regulation: Varies based on specific load conditions
Environmental Parameters:
Operating Temperature: -20～+70℃ (please refer to the "Derating Curve")
Storage Temperature: -40～+85℃
Storage Humidity: 10-95%RH
Vibration Resistance: 10-500Hz, 2G, 10 minutes/cycle, 60 minutes each for X, Y, and Z axes
Other Parameters:
Mean Time Between Failures (MTBF): ≥230.2K hrs (MIL-HDBK-217F, 25℃)
Installation Method: TS35 rail-mounted installation
Protection Class: IP20
Weight: Approximately 1.08kg
Dimensions: 125.263113.5mm

MQR480-24C is a high-performance, high-efficiency rail-mounted switching power supply launched by Mibbo, belonging to the MQR480-□C series.

1. Product Features

High-Performance Output: MQR480-24C provides 480W of output power and 24V output voltage, making it suitable for high-power equipment. Its high-efficiency design ensures low energy consumption even at full load, reducing overall system operating costs.
Full-Range AC Input: The power supply supports a full AC input range from 90 to 264VAC, eliminating concerns about voltage fluctuations. Additionally, it features active PFC (Power Factor Correction) functionality, improving the power factor and reducing grid pollution.
Multiple Protection Mechanisms: MQR480-24C is equipped with multiple protection mechanisms such as overload, overvoltage, short circuit, and over-temperature, ensuring that both the power supply and connected equipment are well protected. In case of abnormalities, the power supply will automatically engage protective measures and resume output after the abnormal conditions are removed.

2. Application Fields

The MQR480-24C rail-mounted switching power supply is widely applicable in industrial automation, control systems, communication equipment, data centers, and other fields. It provides stable and reliable DC power support for various high-precision, high-reliability equipment, ensuring normal equipment operation and system stability.

3. Technical Specifications

Input Voltage Range: 90～264VAC/127～370VDC
Input Frequency Range: 47～63Hz
Output Voltage: 24V
Output Power: 480W
Efficiency (Typ): 93%
Output Voltage Adjustment Range: 24V～28V
Rated Current: 20A
Inrush Current (max): Varies based on input voltage
Protection Functions: Overload, overvoltage, short circuit, over-temperature, etc.
Operating Temperature Range: -40～+70℃ (please refer to the load derating curve)
Storage Temperature Range: -40～+85℃
Protection Class: IP20
Weight: Approximately 1.5Kg
Dimensions: 125.2mm (L) × 85.5mm (W) × 128.5mm (H)"

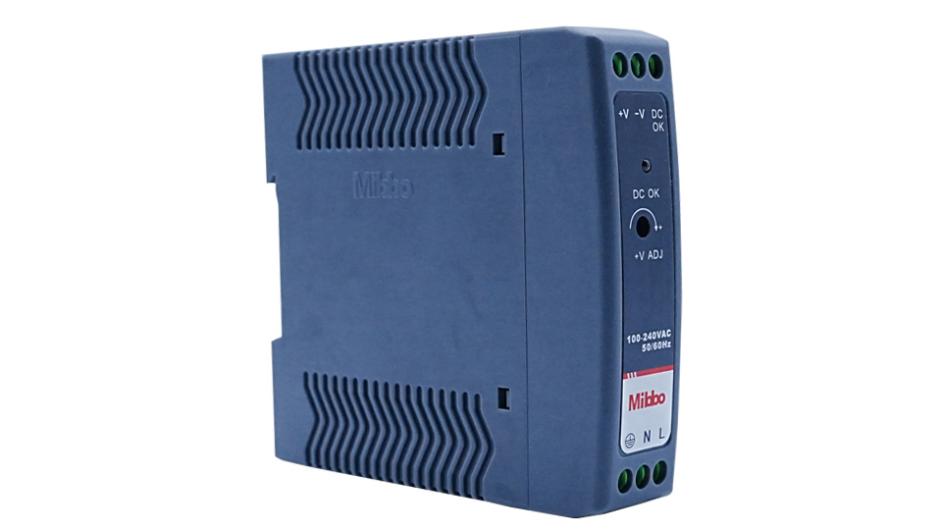

1. Product Features

MGR060-24F boasts international universal full-range AC input capability, easily accommodating power standards in various countries and regions. Its comprehensive protection mechanisms, including short-circuit, overload, and overvoltage protection, ensure safe and reliable operation of the power supply under various abnormal conditions. Additionally, it adopts a natural air-cooling design, providing excellent heat dissipation and effectively extending its service life.

2. Electrical Specifications

In terms of electrical performance, MGR060-24F excels. It supports a wide input voltage range of 85-264VAC or 120-370VDC, meeting the power needs of various scenarios. On the output side, the power supply provides a stable 24V DC voltage with a rated current of 2.5A and a rated power of up to 60W, fully satisfying the power supply requirements of various devices. Meanwhile, its flexible output voltage adjustment range ensures stable voltage output under various load conditions.

3. Performance Parameters

MGR060-24F also excels in performance parameters. With low ripple noise, maximized at 150mVp-p, it ensures the purity of power supply. The voltage accuracy reaches ±1%, and both the line regulation and load regulation are controlled within ±1%, further enhancing the stability and reliability of power supply. Additionally, the unit operates at a high efficiency, with a maximum efficiency of 88%, effectively reducing energy loss.

4. Environmental Adaptability, Installation, and Maintenance

MGR060-24F demonstrates excellent environmental adaptability, capable of stable operation within an operating temperature range of -20°C to +70°C. It also has good vibration resistance, adapting to various harsh industrial environments. In terms of installation and maintenance, the power supply supports TS35 rail mounting, with a simple and convenient installation method. Additionally, it features comprehensive indicator lights and protection functions, facilitating user status monitoring and troubleshooting.
