The market is increasingly demanding for drive solutions with high acceleration torques respectively a very dynamic behaviour. To sectors like automation and robotics, also the compactness of the motors is of vital importance. In order to realize diverse applications the motors can be largely individualized.

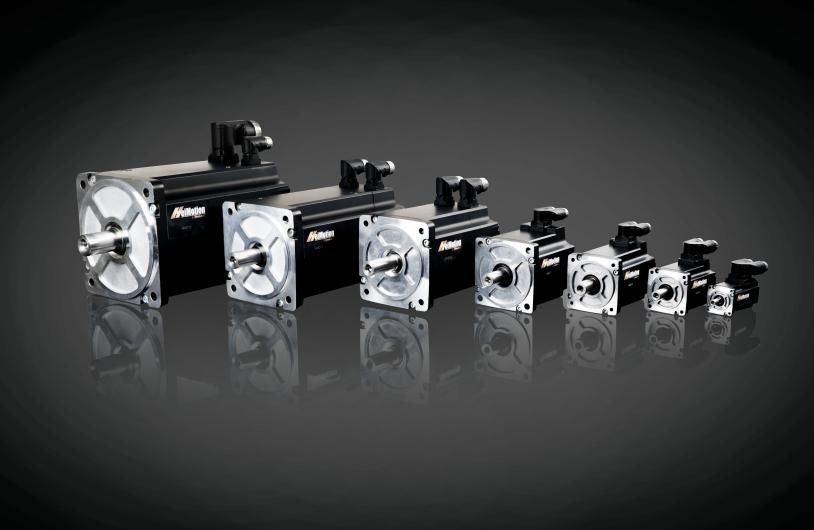

As an answer to the new demand situation Heidrive developed the new series HMD - HeiMotion Dynamic, which represents highly dynamic servo motors. The motors of this series are not only endued with an optimized acceleration behaviour but also with particular robustness. The dynamic of the HMD motors is achieved by a material optimization on the rotor and a reduction of overall length. Furthermore, a new winding technology has been used for the HMD series.

The robustness of HMD motors was achieved, inter alia, by a full grouting under vacuum. In this way the coil is ideally thermally tied to the laminated core and the motor case. External mechanical influences like shocks or vibrations thus do not affect the stability of the windings. The latter are fully enclosed in the casting compound and thereby optimally protected. Another positive impact of the full grouting is the avoidance of partial discharges and koronas. This results in a longer service life of the drives. As an answer to the demands for 24/48V capable drive systems, with HMD a low-voltage series is offered to the market. In addition, the torque gradation has been enlarged at the HMD series.

More information are available at: https://www.heidrive-motion.net/en/products/motors/servomotors_dynamic.html

• AC/DC: AC, DC
• Type: synchronous
• Voltage: 48V, 24V
• Other characteristics: air-cooled, low-inertia, high-efficiency, permanent magnet, modular, IP65, compact, rugged, robust, multi-speed
• Torque: Max.: 5.5 Nm (4.0566 ft.lb), Min.: 0.43 Nm (0.3172 ft.lb)
• Power: Max.: 1,950 W (2.651 hp), Min.: 150 W (0.204 hp)
• Rotational speed: Max.: 6,000 rpm (37,699.11 rad.min-1), Min.: 3,000 rpm (18,849.56 rad.min-1)
• Diameter: Max.: 80 mm, Min.: 60 mm
