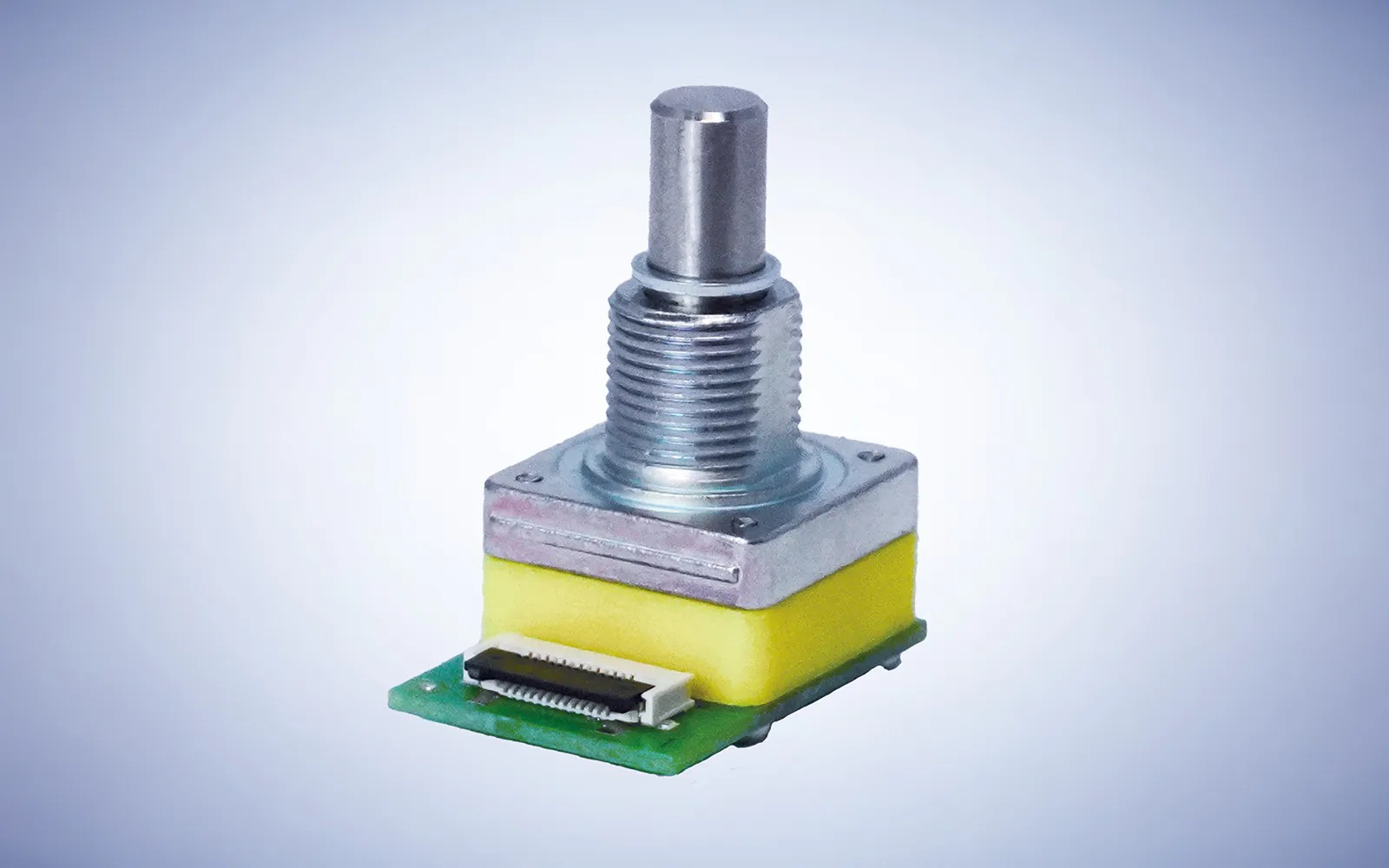

The ESC17 SAFETY raises the input safety to a new level by means of redundancy. The magnetic detection of the rotary movement and button signals makes the ESC17 SAFETY almost wear-free and extremely reliable. With 16 locking positions, the ball-spring latch used offers pleasant haptic feedback. The latching mechanisms of the ESC17 SAFETY are designed for several 100,000 rotations and scanning movements, and their feel can be adapted to customer requests. The protection from ESD discharges acc. IEC 61000-4-2 in installed condition is granted, and the rotary encoder has passed respective tests with excellence. The ESC17 mini remains unimpressed in case of EMC disturbances, e.g. acc. DIN EN 12895, and ensures constant operation without any negative influence. Thanks to the two independent HALL sensors, the rotary and tactile signal is detected in a redundant way. In case of an error, a separate signal is emitted via a dedicated PIN. This ensures reliable and safe operation at any time.

Robust and Compact

With its dimensions of 17 x 19 mm (L x W) and an installation height of 11 mm below the front plate, the rotary encoder is significantly more compact than comparable products on the market. Its high robustness makes it particularly suitable for use in compact, mobile devices, such as defibrillators or handheld terminals for machine tools, robots, and cobots. Thanks to its water and dust proofness against the front plate, it is also suitable for use under extreme ambient conditions, e.g. in operating units of CNC machines that work with lubricants and coolants, municipal vehicles, in forestry and agriculture as well as in construction machines and their handheld terminals. In a nutshell: wherever reliable redundant signal input and detection with error recognition is essential as soon as people might enter the working range of the machine.

Adaptations for Special Requirements

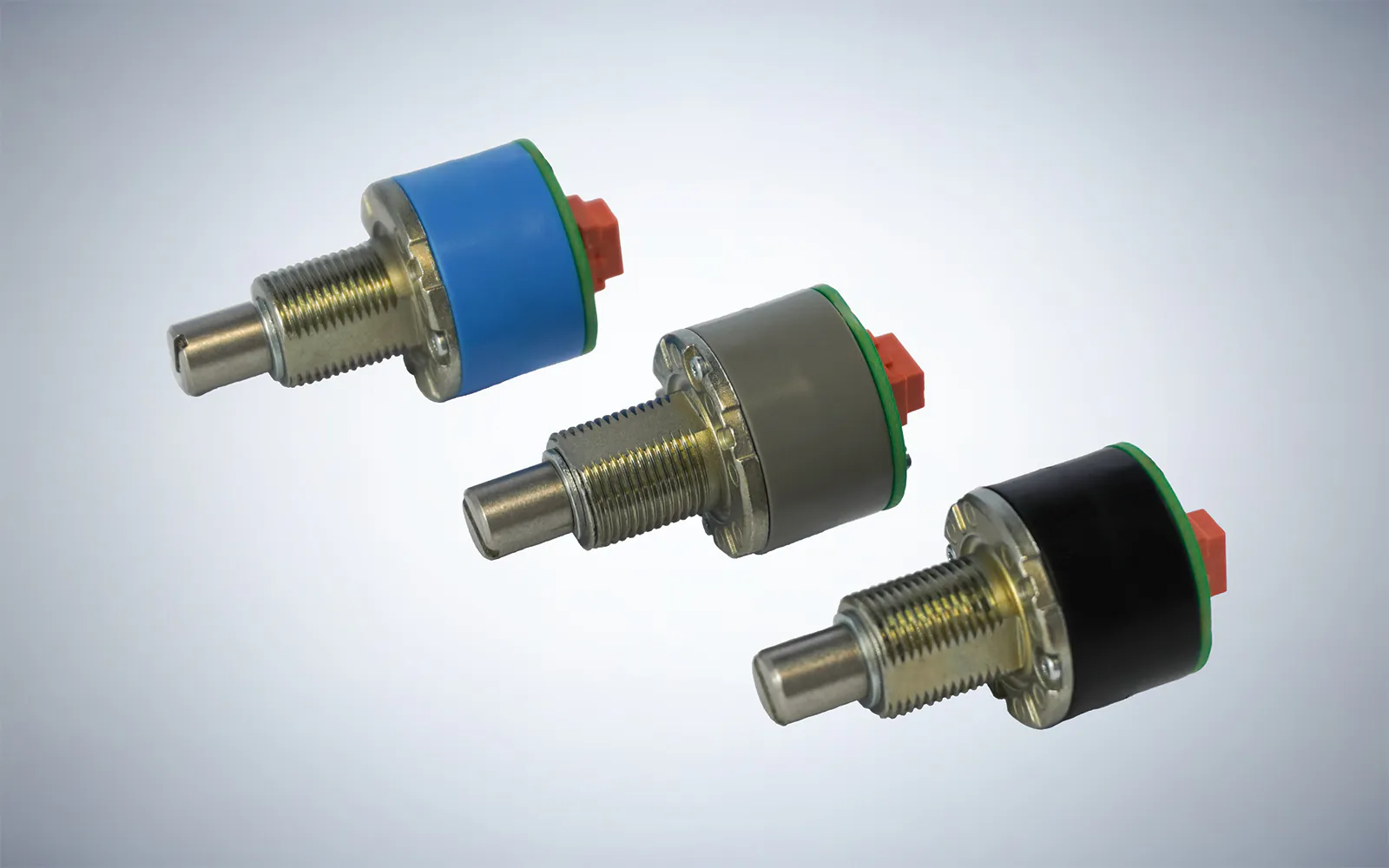

Thanks to a smart modular system, EBE sensors + motion offers a variety of adaptations for its rotary encoders. In this way, individual solutions for different applications can be realized. The development always concentrates on designing the best possible product for the respective operators, with a focus on quality and long service life in order to provide end users with long-lasting benefits from the customized solutions.
