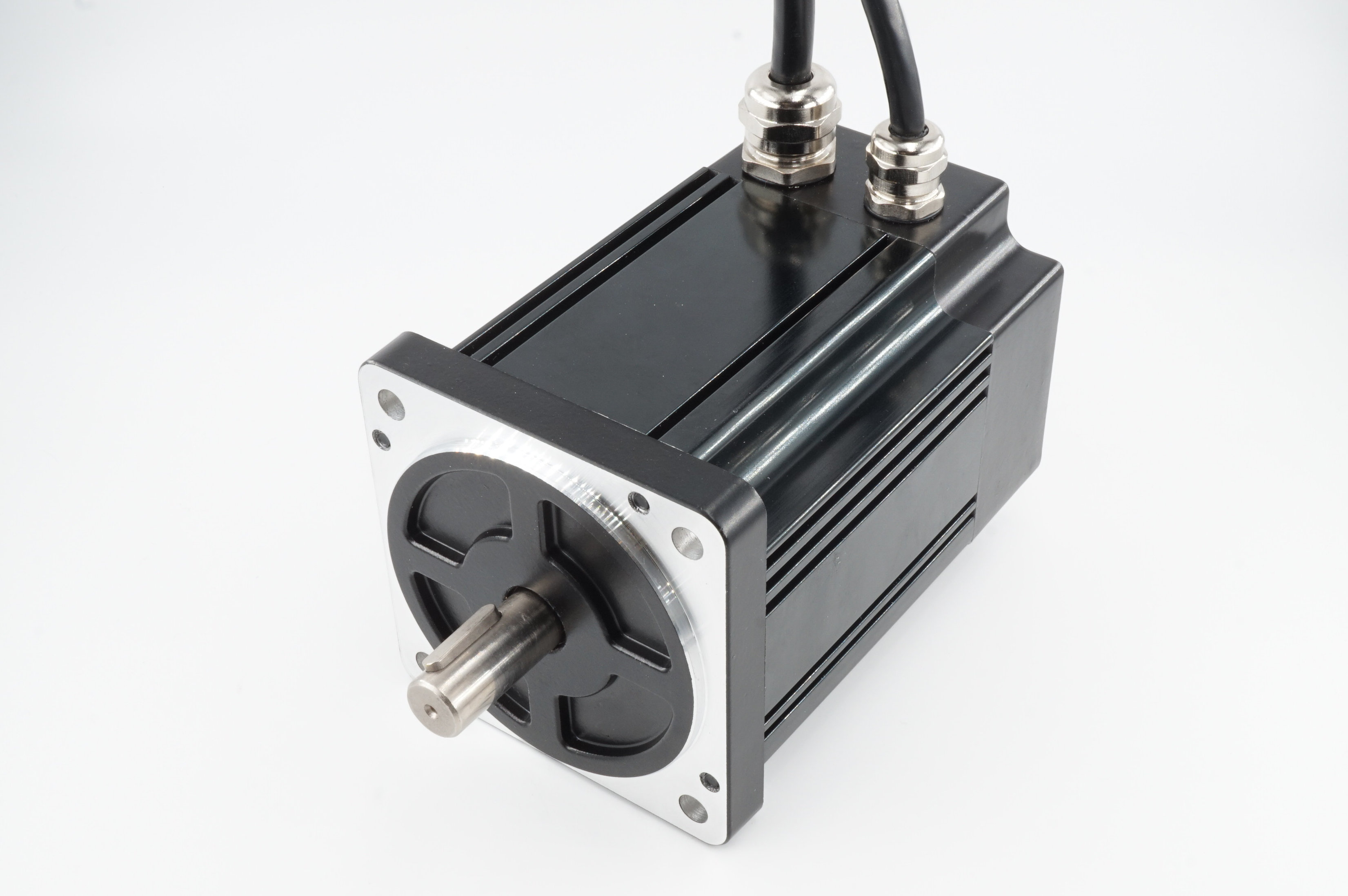

New IP65 high-torque BLDC motors
Beschreibung
IP65 high-torque BLDC motors:
The multi-pole motor design of the ELRA high-torque drives enables nominal speeds of 700-800rpm and continuous torques of up to 5.5Nm. In addition, the motors achieve high peak torques of up to 8Nm, which means that dynamic load changes and load peaks can also be absorbed much better than would be possible with gearboxes. In addition, the absence of a gearbox enables, among other things, backlash-free positioning and quiet operation. The service life of up to 20,000 hours cannot be achieved with standard gearboxes either.
Key specs:
- Flange sizes: 80 and 100mm
- Nominal torque: 2,2 bis 5,5Nm
- Protection level: IP65
- Optional: Encoder; External Controller
Optional: Incremental Encoder with up to 4096 pulses/rev. / connector assembly / external speed and position controller with CAN-Bus, Profibus, EtherCAT
