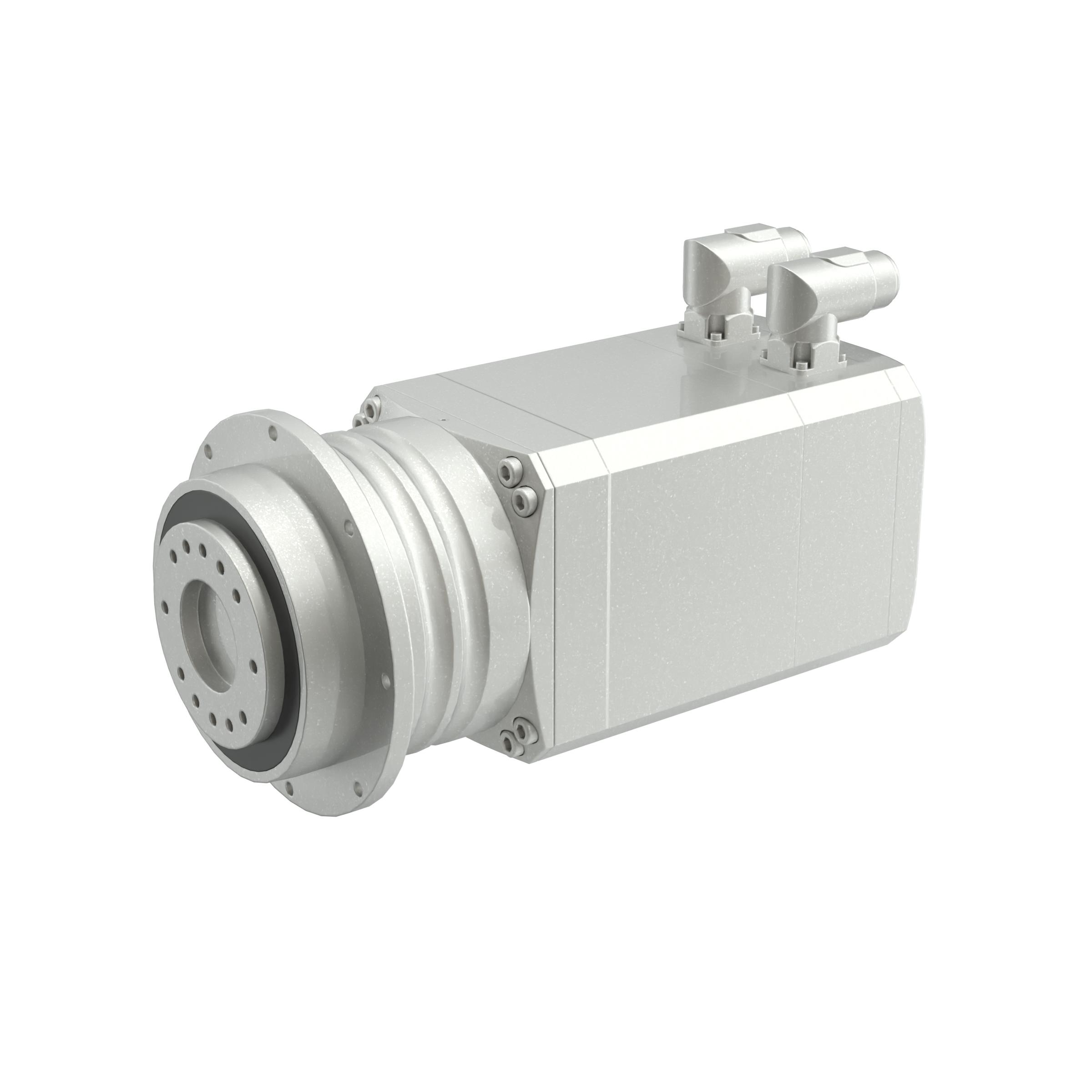

Using an integrated solution, rather than a traditional gearhead/motor combination, the BMS series offers revolutionary space-saving machine design, a wider range of options and a higher performance due to the synergies between permanent magnets, synchronous motors and precision planetary gearboxes technologies. With very reliable tested features, the customer has the flexibility to select three types of performance with an excellent combination variants low overspeed, medium overspeed and high overspeed. All these variants have been designed to optimize the output needed with the benefits of supreme compactness, highest torque / input speed and optimization of drive size. These excellent benefits are achieved using 5 gearboxes sizes and 14 motors in combination with 3 types of Yarn Winding machines. Excellence and reliability allow continuous duty to run your application safely.

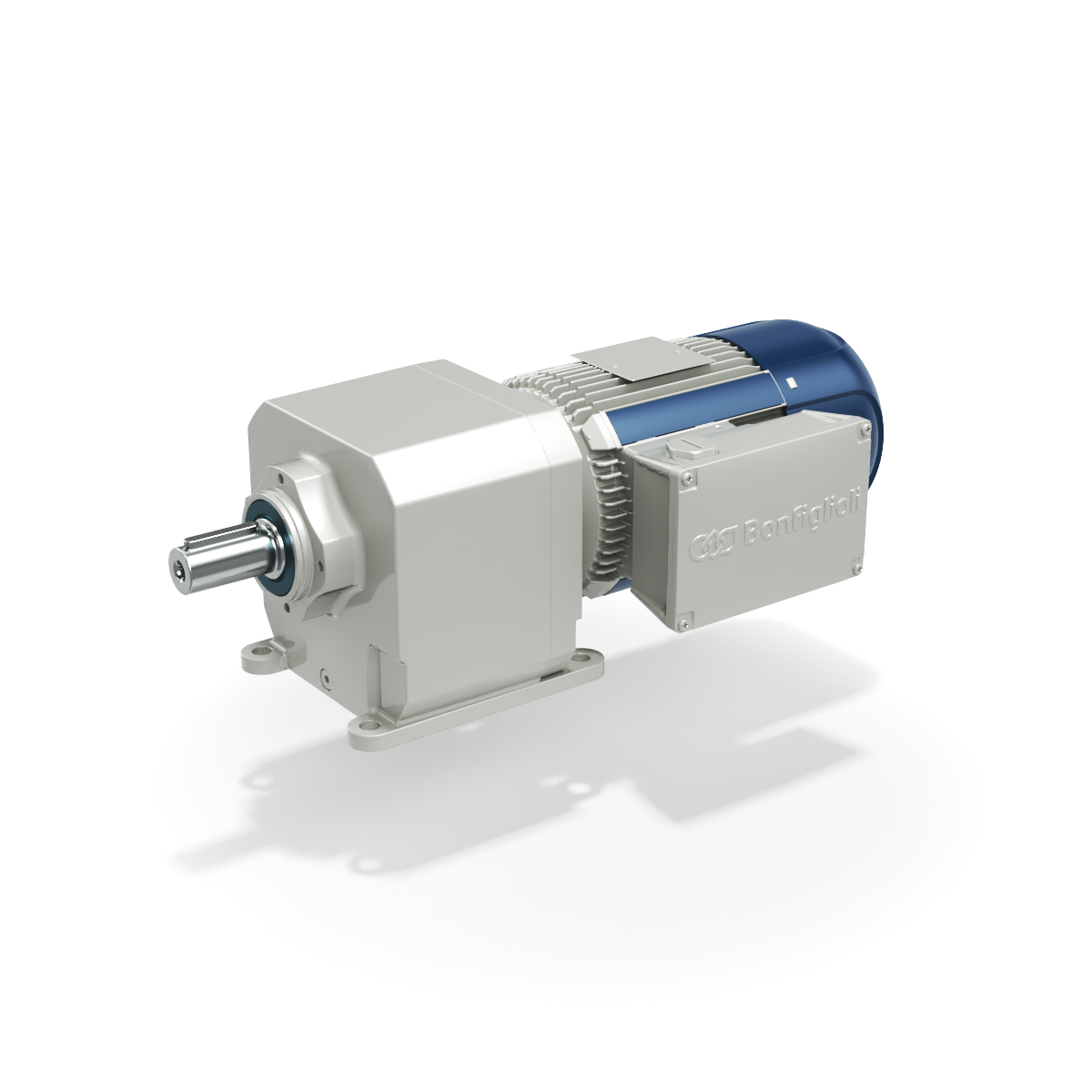

EVOX CP is a helical in-line gearbox with a smooth surface that gives high performance at a great value. With a market standard-aligned footprint, EVOX CP can be fitted to any machine without changing the gear unit interface. Thanks to Bonfiglioli's wide range of versions, options and motor technologies, EVOX CP can be adapted to any machine need. The EVOX CP Series can be combined with a wide range of electric motors such as asynchronous motors (both IEC and compact) and reluctance motors (BSR).

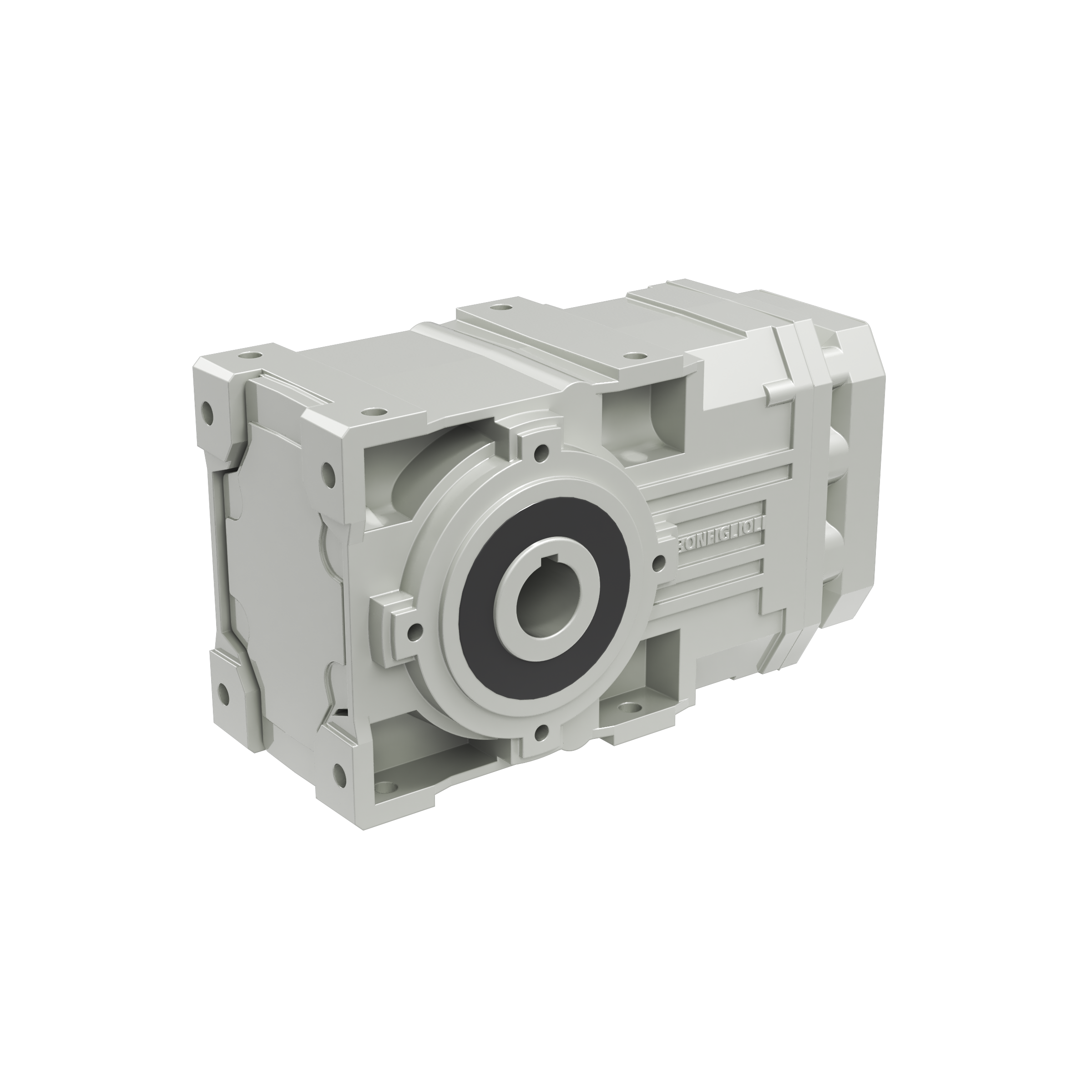

Die Baureihe A verbindet hohe Leistung mit Zuverlässigkeit, niedrigen Wartungskosten und einem breiten Drehmomentbereich. Ihre außergewöhnliche Kompaktheit verdankt die Baureihe A der rechtwinkeligen Anordnung von AN- und ABTRIEB. Die spezielle Zahnradsatzkombination macht dieses rechtwinkelige Modell zum effizientesten und langlebigsten Produkt des Leicht- und Mittellastspektrums von Bonfiglioli. Die Baureihe A kann durch zahlreiche, von Bonfiglioli hergestellte Elektromotoren ergänzt werden. IEC- und Kompakt-Asynchronmotoren (BN-BE-BX/M-ME-MX), Servomotoren (BMD) und Reluktanzmotoren (BSR) können mit der Baureihe A gekoppelt werden.

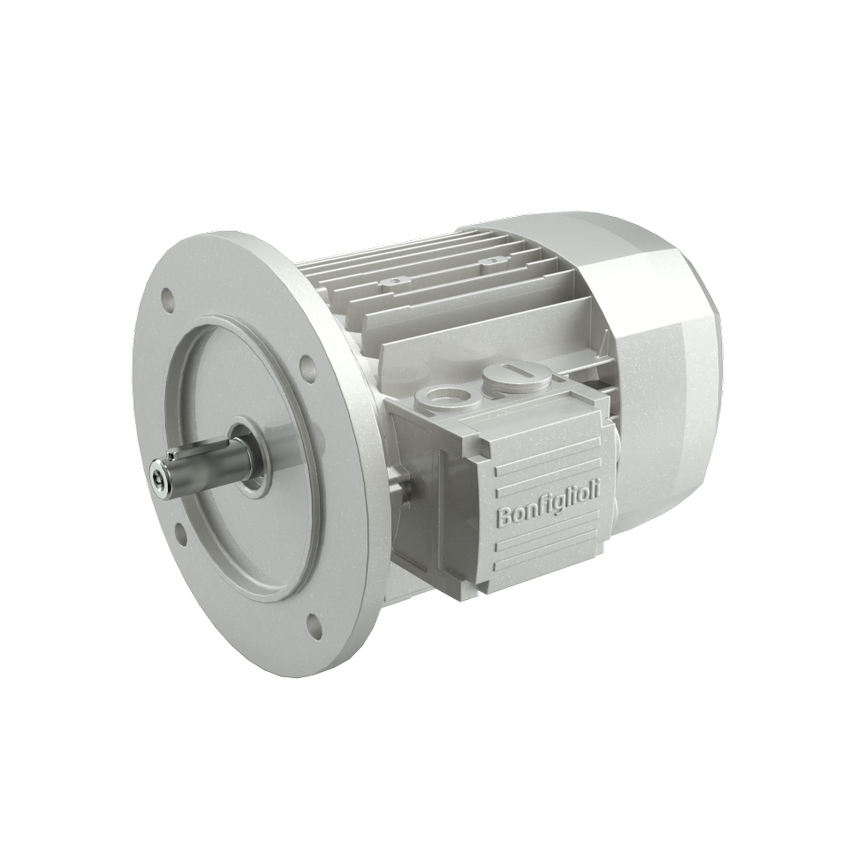

Synchronous reluctance motor

The synchronous reluctance motor guarantees a sustainable energy-saving solution that decreases the overall environmental impact, thanks to the absence of magnets and increased efficiency. Reduced operating costs allow a fast return on investment. This product benefits from the proven simplicity and reliability of induction motors and the higher efficiency of synchronous motors.
Bonfiglioli is able to offer two distinctive versions of BSR synchronous reluctance motor series.
The High Efficiency (E) version is characterized by the Super Premium IE4 Efficiency Class level at all the rated operating points, including those in the partial load range. The High Output (O) version allows to reduce the motor size in comparison with an induction motor of the same output power, maintaining an efficiency level equal or higher than the IE2 Efficiency Class.

Key benefits

• Highly accurate sensorless control technology
• Compact, economical & eco-friendly
• High dynamic response
• Energy savings
• High reliability
• High performance solution

Both Bonfiglioli packages are IES2 according to the International Efficiency of Systems (IES) classification for the drive and motor combination (IEC 61800-9-2).

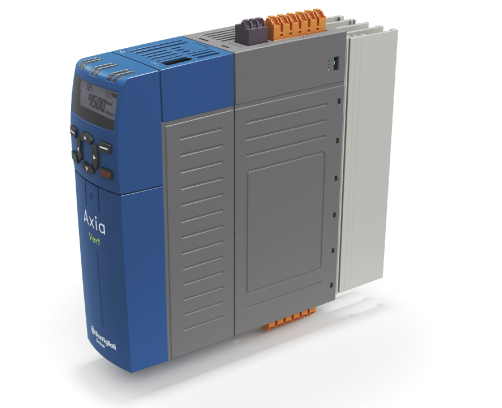

The Bonfiglioli AxiaVert series is designed to allow great flexibility and the highest levels of performance, making it ideal for a wide range of applications. The AxiaVert series' modular design offers integrated functional safety, optional encoder evaluation (including digital encoders like Hiperface DSL and EnDat 2.2), open communication protocols for compliance with Industry 4.0 standards, and an intuitive GUI for commissioning and monitoring.
