Touch Panel F-Series

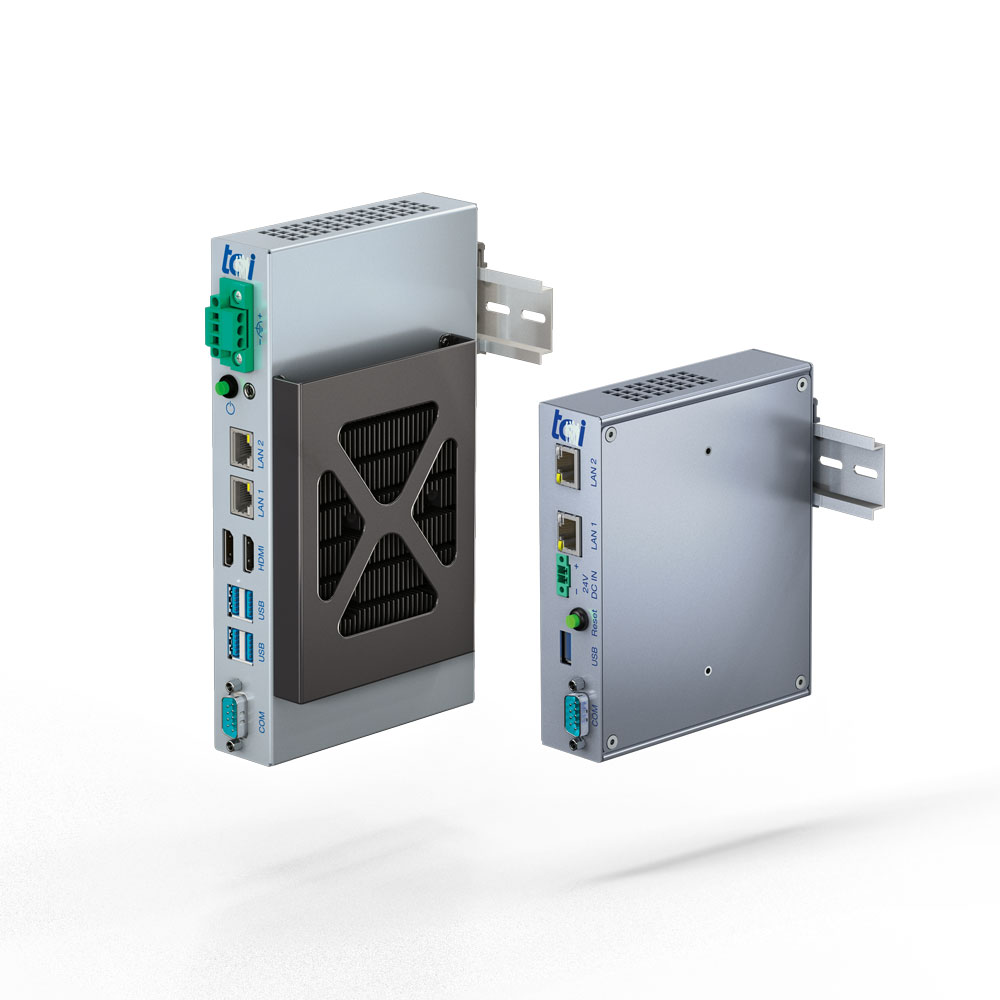

The compact IPC-mimas and IPC-minor box PCs are particularly robust thanks to the powder-coated sheet metal housing. They can be installed in a space-saving way using book mounting, so that all connections are easily accessible from the front.

IPC-mimas:

The IPC-mimas is particularly suitable for applications in the areas of IoT connectivity or edge computing, for example for collecting, processing, monitoring and analyzing data - and transferring data to the cloud. Modern protocols such as MQTT and OPC-UA are supported.

The Special Features Are:

• robust ARM hardware with hardened Linux
• fanless and wear-free system design
• flexible installation: space-saving book mounting or via VESA 75/100 adapter
• updateable via secure cloud (web-based device management)
• with pre-installed software suite

IPC-minor:

The IPC-minor is the ideal basis for machine-related applications in the areas of data acquisition, system monitoring, operation and visualization or for any other client or host applications. It can also be used as an edge gateway or data concentrator. The energy-efficient and fanless system on the x86/x64 platform from Celeron is scalable up to Core i5.

The Special Features Are:

• current processor technology from Intel Celeron to Core i5
• fanless, wear-free system design with passive cooling
• space-saving book mounting via top-hat rail adapter or wall bracket
• version management and updates possible via network (web-based device management)

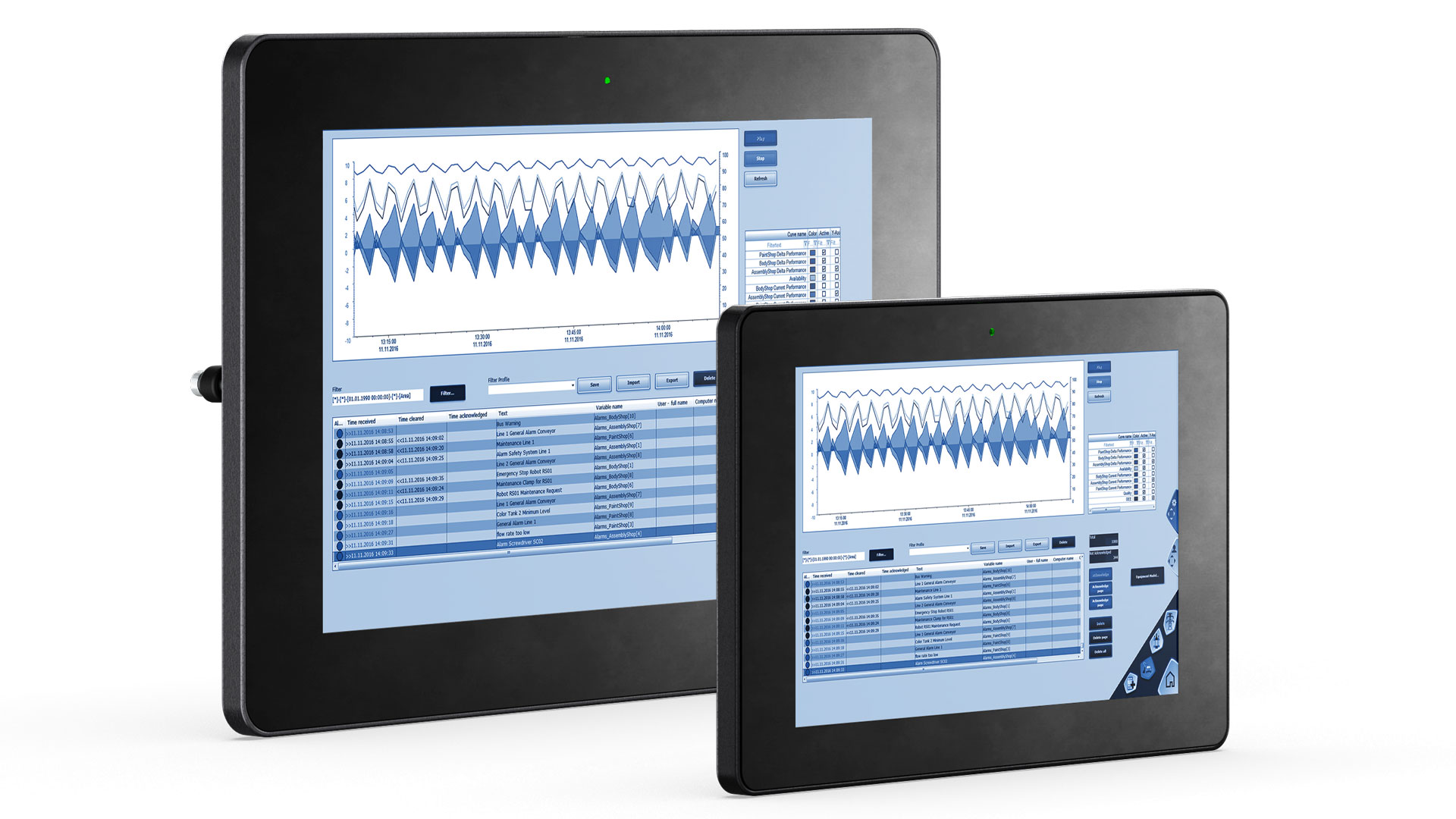

The WP7A and WP10A are high-performance multi-touch panels with a modern glass-front design and a robust aluminum mounting front – ideal for control panels and switchboards in industrial environments.

Equipped with a Linux-based Yocto operating system, they adhere to the "Design by Secure" security approach and offer the highest cybersecurity standards for a wide range of applications.

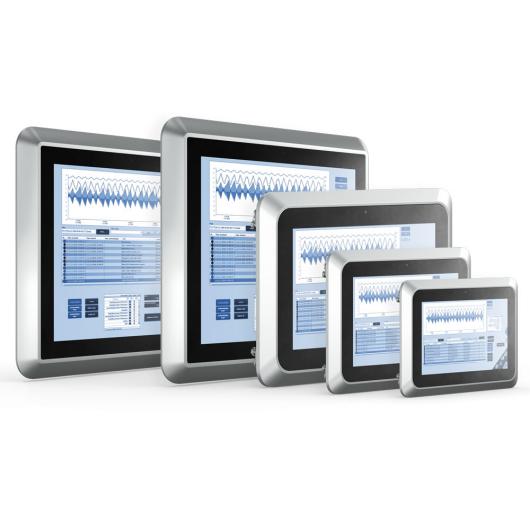

The slim and robust F-Series touch panel for mounting arms is fully enclosed. It features a continuous real glass front and, thanks to its material mix with anodized aluminum, provides reliable protection for industrial applications. A status LED with operating status indicator is integrated behind the glass on the front.

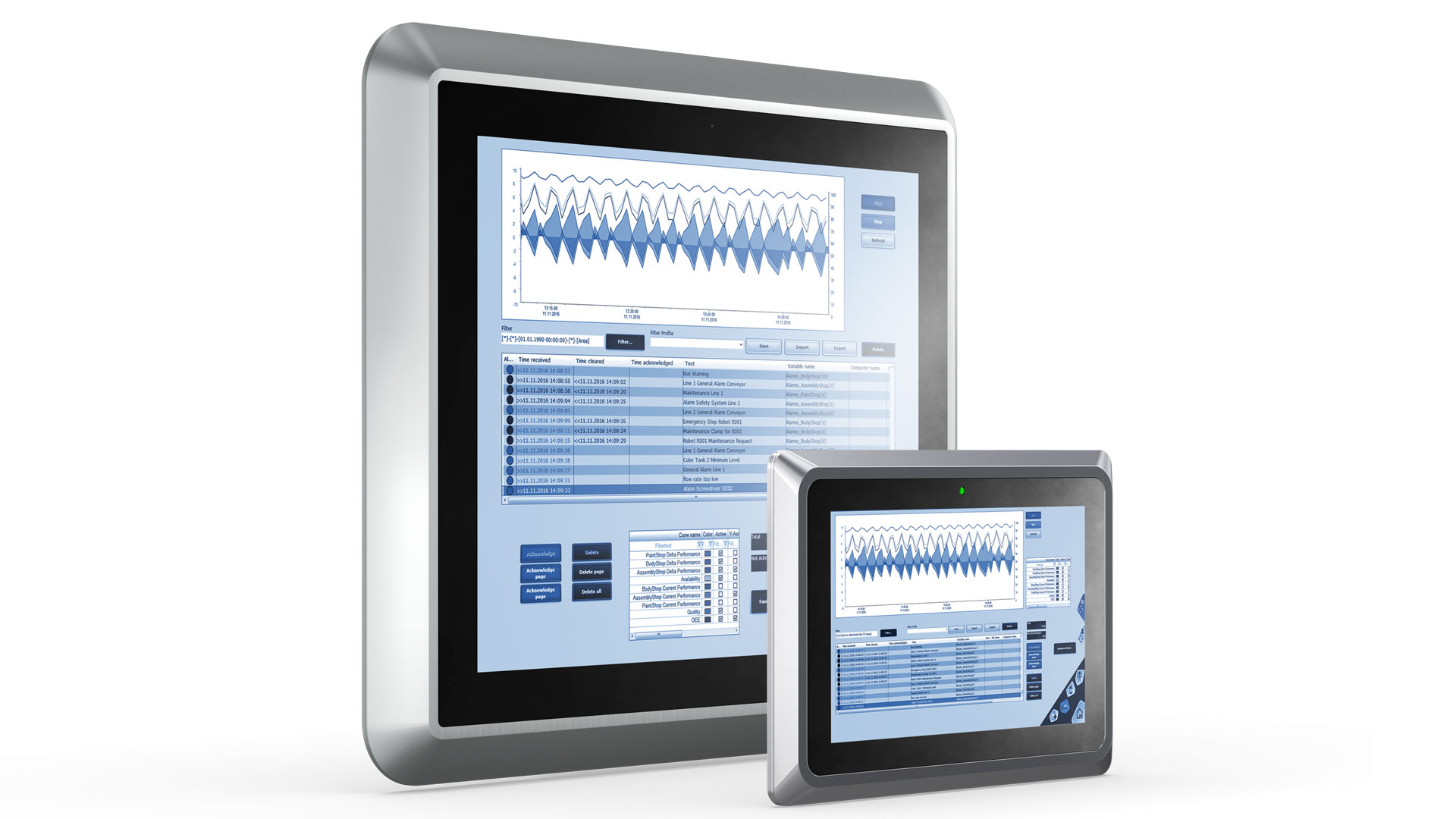

The F10T and F19T expand the F-Series with two additional display diagonals: 10 inches and 19 inches, respectively, for VESA-compatible mounting arms.

For hygienically demanding environments, the F10T is also optionally available with a complete stainless steel housing (front and back).

The F-Series for mounting arms offers solutions with Linux, Android and PC technology.

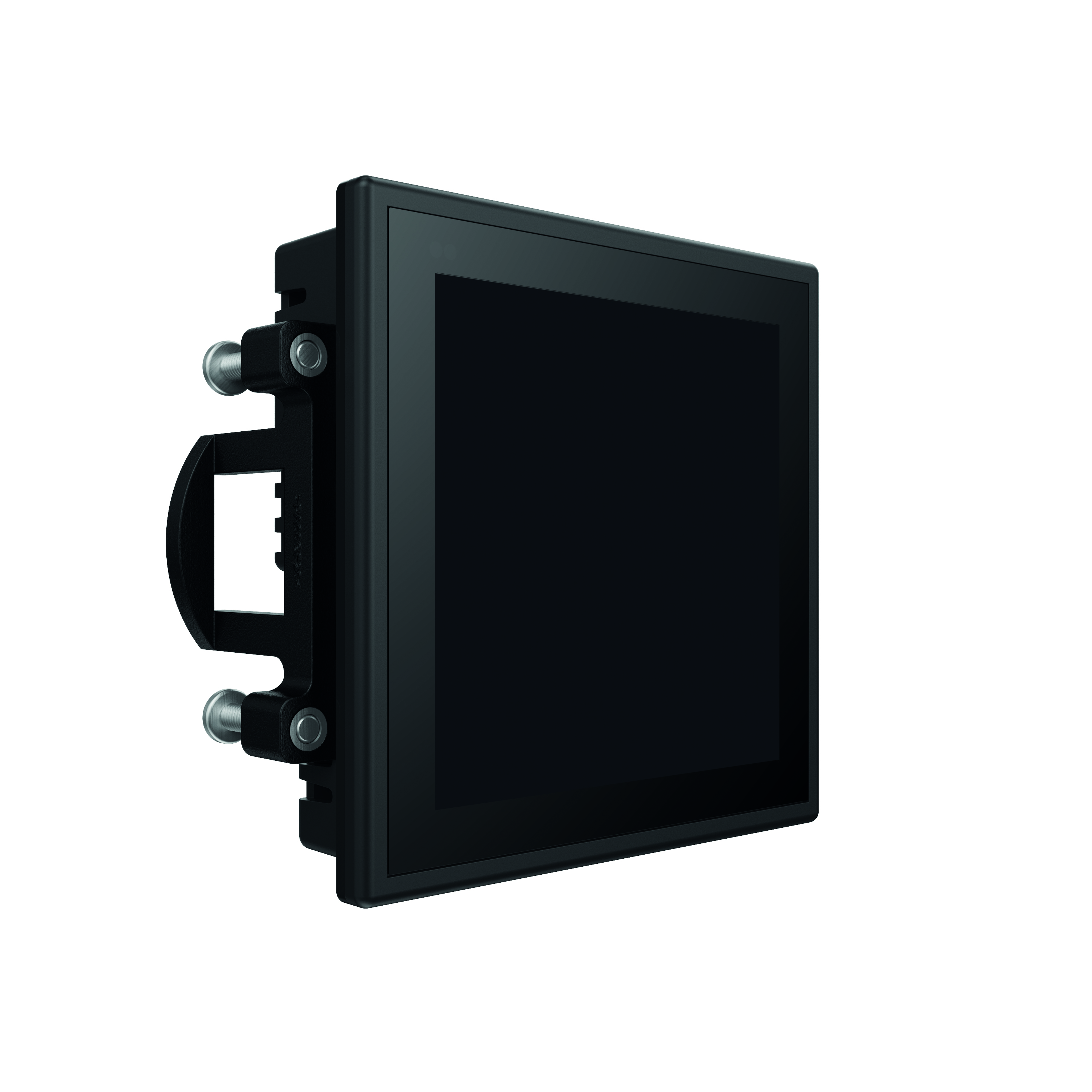

This web-based 4-inch touch panel in the format 96x96 mm is particularly suitable for energy and supply technology.
The fanless and at the same time robust touch panel offers IP 54 protection on the front and a light, industrial-grade plastic housing.

Alternatively, we offer the system with 7“ and 10“ touch.

The Special Features Are:

• web-based touch panel in conventional analog display instruments format
• for energy and supply technology
• IP54 front in 96x96 standard format
